Turn x Mill

Complete complex parts in one pace.

TURN X MILL

Efficient single-setup machining

Our milling spindle was introduced as an option in the early 2000s, leading into developing our TURNXMILL series to meet the growing demand for efficient, single-setup machining.

Based on the proven SwedTurn legacy, its modular design combines flexibility with the high precision required in advanced manufacturing.

The TURNXMILL maintains core features our customers trust: a solid, thermally stable bed, reliable continuous operation, and exceptional repeatability in high-volume production.

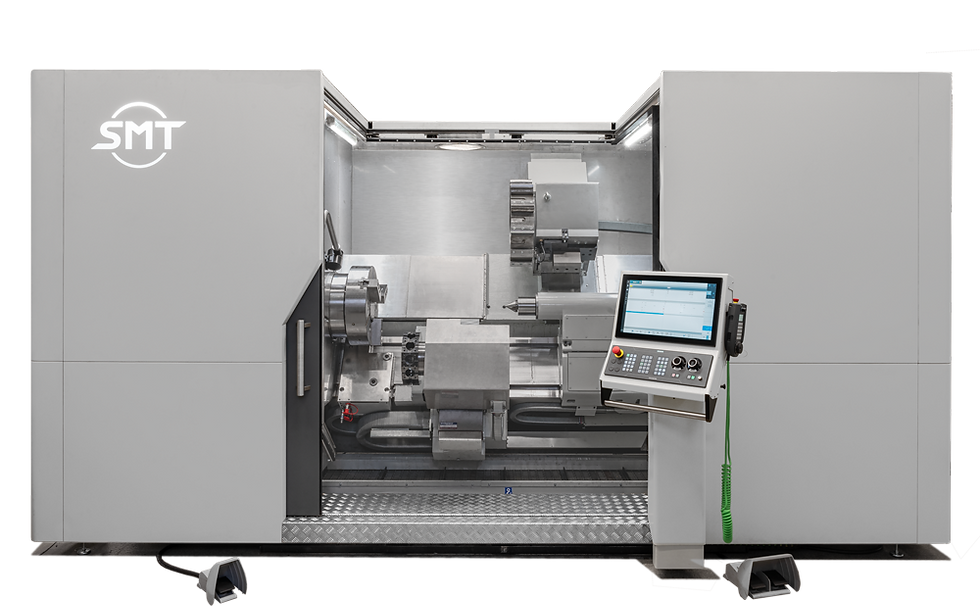

The multifunctional TXM500 and TXM800 turning-boring-milling centers enable complete single-setup machining of complex components, with swing diameters up to 750 mm and lengths up to 2350 mm. These advanced machines combine turning and milling functions in one solution, supporting a wide range of operations—including threading, drilling, boring, milling, gear hobbing, grinding, and in-process measuring.

A 18/27/30 kW milling spindle with integrated motor and top-mounted tool magazine ensures fast tool changes and space efficiency. The sub-spindle, available with 30/39 kW or 44/49 kW, can be equipped with custom chuck systems.

With the ability to handle workpieces up to Ø700x3500 / Ø800x3400 mm, plus C-axis operation and a front tool turret, the TXM series delivers precise, heavy-duty machining in a single setup. Standard control is Siemens Sinumerik One with Fanuc and Fagor available as an option.

Features

Your choice of control system, tailored to your preferences – from simulation to reality.

As standard Siemens Sinumerik One

> "Top speed + top surface" delivers high quality contours at faster speeds on complex surfaces. The SIMATIC S7-1500F PLC speeds up cycle times and delivers faster hardware responses, Cutting tool changes and other PLC-related tasks are executed with greater efficiency.

> Supports turning, milling, multitasking, and other manufacturing processes in one system.

> High resolution multi-touch panels, powerride override controls for faster and better run-in. mobile control via the portable HT 10 terminal.

> OPC UA 3.0 enables fast and secure data exchange in industrial environments.

Available with > Fanuc 31ii-B5 Plus > FAGOR CNC 8065 ELITE M

The foundation for precision: The SMT reliable, steady machine bed.

Our SMT machines are developed with a deep understanding of machining fundamentals and a clear vision for modern production demands. Combining decades of experience with state-of-the-art technology, we deliver reliable, high-performance solutions for complex and heavy-duty machining. From robust construction to intelligent chip management, every detail is designed to ensure long-term precision, efficiency, and adaptability in a rapidly evolving industry.

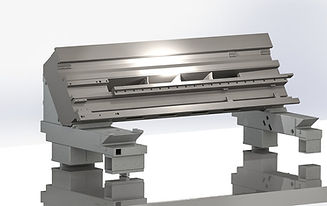

The sturdy gray cast-iron inclined bed, engineered with a 45° or 55° slant, offers outstanding structural rigidity. Its innovative axis geometry allows for exceptionally wide guideway spacing and minimizes the distance between the machining area and the guideways. This optimized layout not only improves stability and vibration damping but also enhances the overall machining accuracy, especially during heavy or interrupted cuts.

Seamless collaboration between robot loading and human operators

Our machine design emphasizes the synergy between automation and human interaction. By combining efficient robot loading systems with operator-friendly access, we ensure smooth workflows, increased productivity, and safe handling throughout the machining process.

> Ergonomic working positions: The wide step and vertically opening doors provide the operator with easy, intuitive access to the machine. This enhances ergonomics by enabling comfortable standing positions and unrestricted entry. Manual tasks such as loading workpieces, checking measurements, or handling tools, whether from the top or side are now more accessible and less physically demanding.

> Easy implementation in production cells: Developed in close cooperation with SMT's long-term robotics partner, the improved integration concept enables flexible implementation in automated production cells. Multiple interface options and adaptable configurations are available to meet specific customer requirements. Making the transition to automated or hybrid workflows simpler and more efficient.

The modular system is more than flexibility - It's a long term strategy

The system is built on a modular architecture designed to adapt to the changing demands of manufacturing. As production volumes shift, product designs evolve, or new technologies emerge, Swedturn machines can be reconfigured, upgraded, or expanded without the need for complete replacement.

Each machine is tailored to the customer's specific production requirements whether it's a fully integrated turning cell or a standalone CNC lathe.

This ensures that your investment remains relevant and productive - year after year.

For full technical details

Download product catalog >>
